Loas shunt power element. More...

#include <Load.h>

Inheritance diagram for Load:

[legend]

Collaboration diagram for Load:

[legend]

Public Member Functions
	Load (wxString name)

virtual Element *	GetCopy ()
	Get a the element copy.

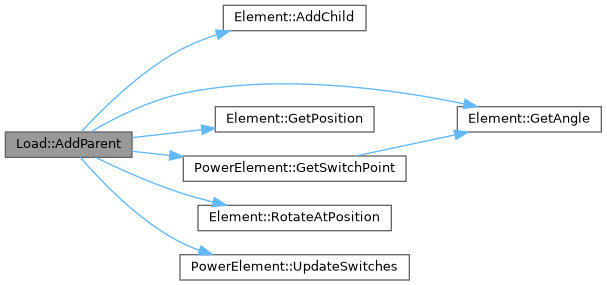

virtual bool	AddParent (Element *parent, wxPoint2DDouble position, bool isOpening=false)
	Add a parent to the element. This method must be used on power elements that connect to a bus, so the parent must be a bus. The element basic points are calculated in this method, so apply this when the element is being inserted.

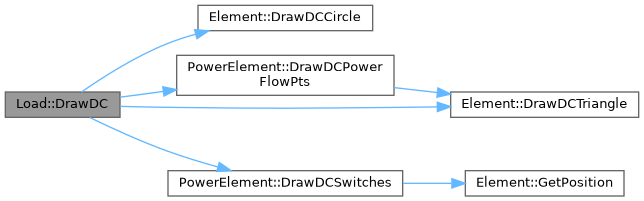

virtual void	DrawDC (GUIColour guiColour, wxPoint2DDouble translation, double scale, wxGraphicsContext gc) const
	Draw the element using GDI+.

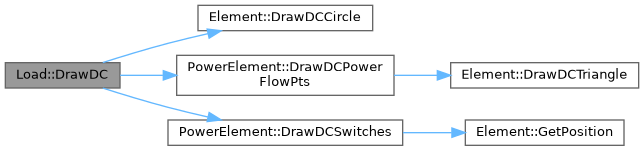

virtual void	DrawDC (GUIColour *guiColour, wxPoint2DDouble translation, double scale, wxDC &dc) const
	Draw the element using wxDC.

virtual void	Rotate (bool clockwise=true)
	Rotate the element.

virtual bool	GetContextMenu (wxMenu &menu)
	Get the element contex menu.

virtual wxString	GetTipText () const
	Get the tip text.

virtual bool	ShowForm (wxWindow parent, Element element, wxWindow *workspace=nullptr)
	Show element data form.

LoadElectricalData	GetElectricalData ()

LoadElectricalData &	GetElectricalDataRef ()

LoadElectricalData	GetPUElectricalData (double systemPowerBase)

void	SetElectricalData (const LoadElectricalData &electricalData)

virtual bool	GetPlotData (ElementPlotData &plotData, PlotStudy study=PlotStudy::STABILITY)
	Fill the plot data.

virtual rapidxml::xml_node *	SaveElement (rapidxml::xml_document<> &doc, rapidxml::xml_node<> *elementListNode)

virtual bool	OpenElement (rapidxml::xml_node<> elementNode, std::vector< Element > parentList)

Public Member Functions inherited from Shunt
virtual bool	Contains (wxPoint2DDouble position) const
	Checks if the element contains a position.

virtual bool	Intersects (wxRect2DDouble rect) const
	Check if the element's rect intersects other rect.

virtual void	Move (wxPoint2DDouble position)
	Move the element other position.

virtual void	AlignToGrid (double gridSize=20.0) override

virtual void	MoveNode (Element *element, wxPoint2DDouble position)
	Move a node. StartMove(wxPoint2DDouble position) before start moving.

virtual void	StartMove (wxPoint2DDouble position)
	Update the element attributes related to the movement.

virtual void	RotateNode (Element *parent, bool clockwise=true)
	Rotate a node.

virtual void	RemoveParent (Element *parent)
	Remove a parent.

virtual bool	NodeContains (wxPoint2DDouble position)
	Check if a node contains a point. If contains, set the attributes related to node movement.

virtual bool	SetNodeParent (Element *parent)
	Set a perent to the node. If all conditions are met, a new parent are added to the element and the points related to the nodes will be calculated.

virtual void	UpdateNodes ()
	Update the nodes according to the parents. If a parent is removed, use this method.

virtual void	UpdateSwitchesPosition () override

virtual void	UpdatePowerFlowArrowsPosition () override

Public Member Functions inherited from PowerElement
	PowerElement ()
	Constructor.

virtual	~PowerElement ()
	Destructor.

virtual wxPoint2DDouble	GetSwitchPoint (Element *parent, wxPoint2DDouble parentPoint, wxPoint2DDouble secondPoint) const
	Get the correct switch position.

virtual bool	SwitchesContains (wxPoint2DDouble position) const
	Check if switch contains position.

virtual void	UpdateSwitches ()
	Update the switch position.

virtual void	DrawDCSwitches (GUIColour guiColour, wxGraphicsContext gc) const
	Draw switch.

virtual void	DrawDCSwitches (GUIColour *guiColour, wxDC &dc) const

virtual void	CalculatePowerFlowPts (std::vector< wxPoint2DDouble > edges)
	Calculate the points of the power flow arrows.

virtual void	DrawDCPowerFlowPts (GUIColour guiColour, wxGraphicsContext gc) const
	Draw power flow arrows.

virtual void	DrawDCPowerFlowPts (GUIColour *guiColour, wxDC &dc) const

virtual void	SetNominalVoltage (std::vector< double > nominalVoltage, std::vector< ElectricalUnit > nominalVoltageUnit)
	Set nominal voltage of the element.

virtual void	SetSwitchingData (SwitchingData data)
	Set the switching data of the element.

virtual SwitchingData	GetSwitchingData ()
	Returns the switching data of the element.

virtual void	SetPowerFlowDirection (PowerFlowDirection pfDirection)
	Set the direction of the power flow.

virtual PowerFlowDirection	GetPowerFlowDirection () const
	Return the direction of the power flow.

virtual bool	HaveDynamicEvent () const
	Check if the power element have dynamic event.

virtual void	SetDynamicEvent (bool dynEvent=true)
	Set if the power element have dynamic event.

virtual double	GetValueFromUnit (double value, ElectricalUnit valueUnit) const

virtual void	SaveCADProperties (rapidxml::xml_document<> &doc, rapidxml::xml_node<> *elementNode)

virtual void	SaveSwitchingData (rapidxml::xml_document<> &doc, rapidxml::xml_node<> *electricalNode)

virtual bool	OpenCADProperties (rapidxml::xml_node<> elementNode, std::vector< Element > parentList)

virtual bool	OpenSwitchingData (rapidxml::xml_node<> *electricalNode)

Public Member Functions inherited from Element
	Element ()
	Constructor.

virtual	~Element ()
	Destructor.

void	SetDragging (bool dragging=true)
	Set if the element are being dragged.

void	SetHeight (double height)
	Set element height.

void	SetPosition (const wxPoint2DDouble position)
	Set the element position and update the rectangle.

void	SetSelected (bool selected=true)
	Set element selection.

void	SetWidth (double width)
	Set element width.

void	SetAngle (double angle)
	Set element angle.

void	ShowPickbox (bool showPickbox=true)
	Set if the pickbox is shown.

void	SetBorderSize (double borderSize)
	Set the size of the border (shown in selected elements).

bool	SetOnline (bool online=true)
	Set if the element is online or offline.

virtual void	SetPointList (std::vector< wxPoint2DDouble > pointList)
	Set the list of points that connect the element to the bus.

ElementType	GetElementType ()

wxRect2DDouble	GetRect () const
	Get the element rectangle.

wxPoint2DDouble	GetPosition () const
	Get the element position.

bool	IsDragging () const
	Checks if the element is being dragged.

double	GetHeight () const
	Get the element height.

bool	IsSelected () const
	Checks if the element is selected.

double	GetWidth () const
	Get the element width.

double	GetAngle () const
	Get the element angle.

double	GetRotationAngle () const
	Get the angle of rotation.

bool	IsPickboxShown () const
	Checks if the pickbox is shown.

bool	IsOnline () const
	Checks if the element is online or offline.

virtual std::vector< wxPoint2DDouble >	GetPointList () const
	Get the list of points that connect the element to bus.

virtual std::vector< wxPoint2DDouble > &	GetPointListRef ()

virtual void	AddParent (Element *parent)
	Add a parent to the element.

virtual void	SetID (int id)
	Set the element ID.

virtual int	GetID () const
	Get the element ID.

virtual void	AddChild (Element *child)
	Add a child to the child list.

virtual void	RemoveChild (Element *child)
	Remove a child from the list.

virtual void	ReplaceChild (Element oldChild, Element newChild)
	Replace a child from the list.

virtual void	AddPoint (wxPoint2DDouble point)
	Add point to the list of points that connect the element to the bus.

void	SetParent (Element *parent, int num)

void	SetChild (Element *child, int num)

virtual void	ReplaceParent (Element oldParent, Element newParent)
	Replace a parent.

virtual bool	PickboxContains (wxPoint2DDouble position)
	Check if a pickbox contains a point. If contains the attributes related to pickbox movement will be calculated.

virtual void	MovePickbox (wxPoint2DDouble position)
	Move the pickbox.

virtual wxCursor	GetBestPickboxCursor () const
	Get the best cursor to shown to the user when the mouse is above a pickbox.

virtual void	ResetPickboxes ()
	Remove the pickboxes.

virtual void	ResetNodes ()
	Remove the active nodes.

virtual wxPoint2DDouble	WorldToScreen (wxPoint2DDouble translation, double scale, double offsetX=0.0, double offsetY=0.0) const
	Convert the element position to screen position.

virtual wxPoint2DDouble	WorldToScreen (wxPoint2DDouble position, wxPoint2DDouble translation, double scale, double offsetX=0.0, double offsetY=0.0) const
	Convert a generic position to screen position.

virtual bool	RotatedRectanglesIntersects (wxRect2DDouble rect1, wxRect2DDouble rect2, double angle1, double angle2) const
	Check if two roteted rectangles intersect.

virtual void	DrawDCRectangle (wxPoint2DDouble position, double width, double height, double angle, wxDC &dc) const
	Draw a circle.

virtual void	DrawDCRoundedRectRotated (wxDC &dc, const wxPoint2DDouble &center, double width, double height, double radius, double angleDeg, int arcSegments=8) const

virtual void	DrawDCCircle (wxPoint2DDouble position, double radius, int numSegments, wxGraphicsContext *gc) const
	Draw a circle using device context.

virtual void	DrawDCCircle (wxPoint2DDouble position, double radius, wxDC &dc) const

virtual void	DrawDCArc (wxPoint2DDouble position, double radius, double initAngle, double finalAngle, int numSegments, wxGraphicsContext *gc) const

virtual void	DrawDCArc (wxPoint2DDouble position, double radius, double initAngle, double finalAngle, wxDC &dc) const

virtual void	DrawDCTriangle (std::vector< wxPoint2DDouble > points, wxGraphicsContext *gc) const
	Draw rectangle.

virtual void	DrawDCTriangle (std::vector< wxPoint > points, wxDC &dc) const

virtual void	DrawStabilityEventGC (wxGraphicsContext gc, wxPoint2DDouble translation, double scale, GUIColour guiColour, bool rotateAnchor=false, wxPoint2DDouble iconPosition=wxPoint2DDouble(-1, -1)) const

virtual void	DrawDCPickbox (wxPoint2DDouble position, wxGraphicsContext *gc) const
	Draw a point.

virtual wxPoint2DDouble	RotateAtPosition (wxPoint2DDouble pointToRotate, double angle, bool degrees=true) const
	Rotate a point as element position being the origin.

virtual wxPoint2DDouble	RotateLocal (wxPoint2DDouble local, double angleDeg) const

virtual wxPoint	RotateAround (const wxPoint2DDouble &p, const wxPoint2DDouble &center, double angleDeg) const

virtual std::vector< Element * >	GetParentList () const
	Get the parent list.

virtual std::vector< Element * >	GetChildList () const
	Get the Child list.

virtual wxPoint2DDouble	GetMoveStartPosition () const

virtual wxPoint2DDouble	GetMovePosition () const

virtual void	CalculateBoundaries (wxPoint2DDouble &leftUp, wxPoint2DDouble &rightBottom) const
	Calculate the element boundaries.

virtual void	GeneralMenuItens (wxMenu &menu)
	Insert general itens to context menu.

virtual double	PointToLineDistance (wxPoint2DDouble point, int *segmentNumber=nullptr) const
	Calculate the distance between a line (formed by point list) and a point.

bool	IsInserted () const
	Check if the element is properly inserted in the workspace.

void	SetInserted (bool inserted=true)
	Set if the element is properly inserted in the workspace.

virtual bool	OpenElement (rapidxml::xml_node<> *elementNode)

void	SaveCADProperties (rapidxml::xml_document<> &doc, rapidxml::xml_node<> *elementNode)

bool	OpenCADProperties (rapidxml::xml_node<> *elementNode)

Protected Attributes
std::vector< wxPoint2DDouble >	m_triangPts

LoadElectricalData	m_electricalData

Protected Attributes inherited from PowerElement
SwitchingData	m_swData

std::vector< std::vector< wxPoint2DDouble > >	m_powerFlowArrow

PowerFlowDirection	m_pfDirection = PowerFlowDirection::PF_NONE

wxColour	m_busColour

wxColour	m_onlineElementColour

wxColour	m_offlineElementColour

wxColour	m_closedSwitchColour

wxColour	m_openedSwitchColour

wxColour	m_powerFlowArrowColour

wxColour	m_dynamicEventColour

bool	m_dynEvent = false

Protected Attributes inherited from Element
ElementType	m_elementType = ElementType::TYPE_NONE

int	m_elementID = 0

std::vector< Element * >	m_parentList

std::vector< Element * >	m_childList

wxRect2DDouble	m_rect

wxPoint2DDouble	m_position

double	m_width = 0.0

double	m_height = 0.0

double	m_angle = 0.0

double	m_borderSize = 2.0

double	m_rotationAngle = 45.0

double	m_switchSize = 10.0

std::vector< wxRect2DDouble >	m_switchRect

bool	m_selected = false

bool	m_dragging = false

bool	m_showPickbox = false

bool	m_inserted = false

int	m_activePickboxID = ID_PB_NONE

int	m_activeNodeID = 0

std::vector< wxPoint2DDouble >	m_pointList

std::vector< wxPoint2DDouble >	m_movePts

wxPoint2DDouble	m_moveStartPt

wxPoint2DDouble	m_movePos

bool	m_online = true

Additional Inherited Members
Static Public Member Functions inherited from Element
static bool	DoubleFromString (wxWindow *parent, wxString strValue, double &value, wxString errorMsg)
	Get a double value from a string. Show a error message if the conversion fail.

static bool	IntFromString (wxWindow *parent, wxString strValue, int &value, wxString errorMsg)
	Convert a string to int. Show a error message if the conversion fail.

static wxString	StringFromDouble (double value, int minDecimal=1, int maxDecimals=13)
	Convert a double value to string.

Protected Member Functions inherited from Shunt
void	DrawDCGround (wxPoint2DDouble position, wxGraphicsContext *gc) const

void	DrawDCGround (wxPoint2DDouble position, wxDC &dc) const

Detailed Description

Loas shunt power element.

Author: Thales Lima Oliveira thale.nosp@m.s@uf.nosp@m.u.br

Date: 06/10/2017

Definition at line 73 of file Load.h.

Constructor & Destructor Documentation

◆ Load() [1/2]

Load::Load ( )

Definition at line 21 of file Load.cpp.

           : Shunt()
{
    m_elementType = TYPE_LOAD;
}

◆ Load() [2/2]

Load::Load ( wxString name )

Definition at line 26 of file Load.cpp.

                        : Shunt()
{
    m_elementType = TYPE_LOAD;
    m_electricalData.name = name;
}

◆ ~Load()

Load::~Load ( )

Definition at line 32 of file Load.cpp.

32{}

Member Function Documentation

◆ AddParent()

bool Load::AddParent	(	Element *	parent,
		wxPoint2DDouble	position,
		bool	isOpening = `false`
	)

virtual

Add a parent to the element. This method must be used on power elements that connect to a bus, so the parent must be a bus. The element basic points are calculated in this method, so apply this when the element is being inserted.

Parameters

parent	Element parent.
position	Node position in the parent.

Reimplemented from Element.

Definition at line 34 of file Load.cpp.

{
    if (parent) {
        m_parentList.push_back(parent);
        parent->AddChild(this);
        wxPoint2DDouble parentPt =
            parent->RotateAtPosition(position, -parent->GetAngle());        // Rotate click to horizontal position.
        parentPt.m_y = parent->GetPosition().m_y;                           // Centralize on bus.
        parentPt = parent->RotateAtPosition(parentPt, parent->GetAngle());  // Rotate back.

        m_position = parentPt + wxPoint2DDouble(0.0, 100.0);  // Shifts the position to the down of the bus.
        m_width = m_height = 20.0;
        m_rect = wxRect2DDouble(m_position.m_x - 10.0, m_position.m_y - 10.0, m_width, m_height);

        m_pointList.push_back(parentPt);
        m_pointList.push_back(GetSwitchPoint(parent, parentPt, m_position));
        m_pointList.push_back(m_position + wxPoint2DDouble(0.0, -20.0));
        m_pointList.push_back(m_position + wxPoint2DDouble(0.0, -10.0));

        m_triangPts.push_back(wxPoint2DDouble(-m_width / 2.0, -m_height / 2.0));
        m_triangPts.push_back(wxPoint2DDouble(m_width / 2.0, -m_height / 2.0));
        m_triangPts.push_back(wxPoint2DDouble(0.0, m_height / 2.0));

        m_inserted = true;

        wxRect2DDouble genRect(0, 0, 0, 0);
        m_switchRect.push_back(genRect);  // Push a general rectangle.
        UpdateSwitches();
        m_pfDirection = PowerFlowDirection::PF_TO_ELEMENT;
        UpdatePowerFlowArrowsPosition();

        return true;
    }
    return false;
}

Here is the call graph for this function:

◆ DrawDC() [1/2]

void Load::DrawDC	(	GUIColour *	guiColour,
		wxPoint2DDouble	translation,
		double	scale,
		wxDC &	dc
	)		const

virtual

Draw the element using wxDC.

Parameters

guiColour	Colours of the system defined in properties.
translation	Translation of the system.
scale	Scale of the system.
dc	Device context.

Reimplemented from Element.

Definition at line 143 of file Load.cpp.

{
    wxColour elementColour;
    if (m_online) {
        if (m_dynEvent)
            elementColour = guiColour->eventElement;
        else
            elementColour = guiColour->enabled;
    }
    else
        elementColour = guiColour->disable;

    std::vector<wxPoint> pointListInt;
    for (auto& pt : m_pointList) {
        pointListInt.emplace_back(static_cast<int>(pt.m_x), static_cast<int>(pt.m_y));
    }
    wxPoint pos = wxPoint(static_cast<int>(m_position.m_x), static_cast<int>(m_position.m_y));

    if (m_inserted) {
        // Draw Selection (layer 1).
        if (m_selected) {
            dc.SetPen(wxPen(guiColour->selection, 2 + m_borderSize * 2.0));
            dc.SetBrush(*wxTRANSPARENT_BRUSH);

            dc.DrawLines(pointListInt.size(), &pointListInt[0]);

            dc.SetPen(*wxTRANSPARENT_PEN);
            dc.SetBrush(wxBrush(guiColour->selection));

            wxPoint2DDouble p;
            wxPoint selTriangPts[3];
            p = m_triangPts[0] + m_position + wxPoint2DDouble(-m_borderSize / scale, -m_borderSize / scale);
            selTriangPts[0] = RotateAround(p, m_position, m_angle);
            p = m_triangPts[1] + m_position + wxPoint2DDouble(m_borderSize / scale, -m_borderSize / scale);
            selTriangPts[1] = RotateAround(p, m_position, m_angle);
            p = m_triangPts[2] + m_position + wxPoint2DDouble(0.0, m_borderSize / scale);
            selTriangPts[2] = RotateAround(p, m_position, m_angle);

            dc.DrawPolygon(3, selTriangPts);

            // Draw node selection.
            DrawDCCircle(m_pointList[0], 5.0 + m_borderSize / scale, dc);
        }

        // Draw Load (layer 2).
        dc.SetPen(wxPen(elementColour, 2));
        dc.SetBrush(*wxTRANSPARENT_BRUSH);
        dc.DrawLines(pointListInt.size(), &pointListInt[0]);

        // Draw node.
        dc.SetPen(*wxTRANSPARENT_PEN);
        dc.SetBrush(wxBrush(elementColour));
        DrawDCCircle(m_pointList[0], 5.0, dc);

        DrawDCSwitches(guiColour, dc);
        DrawDCPowerFlowPts(guiColour, dc);

        wxPoint2DDouble p;
        wxPoint triangPts[3];

        //std::vector<wxPoint2DDouble> triangPts;
        for (int i = 0; i < 3; i++) {
            p = m_triangPts[i] + m_position;
            triangPts[i] = RotateAround(p, m_position, m_angle);
        }
        dc.SetPen(*wxTRANSPARENT_PEN);
        dc.SetBrush(wxBrush(elementColour));
        dc.DrawPolygon(3, triangPts);
    }
}

Here is the call graph for this function:

◆ DrawDC() [2/2]

void Load::DrawDC	(	GUIColour *	guiColour,
		wxPoint2DDouble	translation,
		double	scale,
		wxGraphicsContext *	gc
	)		const

virtual

Draw the element using GDI+.

Parameters

guiColour	Colours of the system defined in properties.
translation	Translation of the system.
scale	Scale of the system.
gc	Graphics context

Reimplemented from Element.

Definition at line 70 of file Load.cpp.

{
    wxColour elementColour;
    if (m_online) {
        //if (m_dynEvent)
        //  elementColour = guiColour->eventElement;
        //else
        elementColour = guiColour->enabled;
    }
    else
        elementColour = guiColour->disable;

    if (m_inserted) {
        // Draw Selection (layer 1).
        if (m_selected) {
            gc->SetPen(wxPen(guiColour->selection, 2 + m_borderSize * 2.0));
            gc->SetBrush(*wxTRANSPARENT_BRUSH);

            gc->StrokeLines(m_pointList.size(), &m_pointList[0]);

            gc->SetPen(*wxTRANSPARENT_PEN);
            gc->SetBrush(wxBrush(guiColour->selection));

            std::vector<wxPoint2DDouble> selTriangPts;
            selTriangPts.push_back(m_triangPts[0] + m_position +
                wxPoint2DDouble(-m_borderSize / scale, -m_borderSize / scale));
            selTriangPts.push_back(m_triangPts[1] + m_position +
                wxPoint2DDouble(m_borderSize / scale, -m_borderSize / scale));
            selTriangPts.push_back(m_triangPts[2] + m_position + wxPoint2DDouble(0.0, m_borderSize / scale));

            // Push the current matrix on stack.
            gc->PushState();
            // Rotate the matrix around the object position.
            gc->Translate(m_position.m_x, m_position.m_y);
            gc->Rotate(wxDegToRad(m_angle));
            gc->Translate(-m_position.m_x, -m_position.m_y);
            DrawDCTriangle(selTriangPts, gc);
            gc->PopState();

            // Draw node selection.
            DrawDCCircle(m_pointList[0], 5.0 + m_borderSize / scale, 10, gc);
        }

        // Draw Load (layer 2).
        gc->SetPen(wxPen(elementColour, 2));
        gc->SetBrush(*wxTRANSPARENT_BRUSH);
        gc->StrokeLines(m_pointList.size(), &m_pointList[0]);

        // Draw node.
        gc->SetPen(*wxTRANSPARENT_PEN);
        gc->SetBrush(wxBrush(elementColour));
        DrawDCCircle(m_pointList[0], 5.0, 10, gc);

        DrawDCSwitches(guiColour, gc);
        DrawDCPowerFlowPts(guiColour, gc);

        std::vector<wxPoint2DDouble> triangPts;
        for (int i = 0; i < 3; i++) { triangPts.push_back(m_triangPts[i] + m_position); }
        gc->PushState();
        gc->Translate(m_position.m_x, m_position.m_y);
        gc->Rotate(wxDegToRad(m_angle));
        gc->Translate(-m_position.m_x, -m_position.m_y);
        gc->SetPen(*wxTRANSPARENT_PEN);
        gc->SetBrush(wxBrush(elementColour));
        DrawDCTriangle(triangPts, gc);
        gc->PopState();

        if (m_dynEvent) {
            DrawStabilityEventGC(gc, translation, scale, guiColour);
        }
    }
}

Here is the call graph for this function:

◆ GetContextMenu()

bool Load::GetContextMenu ( wxMenu & menu )

virtual

Get the element contex menu.

Parameters

menu	menu that will be inserted the element itens.

Returns: True if was possible to build the menu, false otherwise.

Reimplemented from Element.

Definition at line 227 of file Load.cpp.

{
    menu.Append(ID_EDIT_ELEMENT, _("Edit Load"));

    wxMenu* textMenu = new wxMenu();

    textMenu->Append(ID_TXT_NAME, _("Name"));
    textMenu->Append(ID_TXT_ACTIVE_POWER, _("Active power"));
    textMenu->Append(ID_TXT_REACTIVE_POWER, _("Reactive power"));
    textMenu->SetClientData(menu.GetClientData());


    menu.AppendSubMenu(textMenu, _("Add text"));

    GeneralMenuItens(menu);
    return true;
}

Here is the call graph for this function:

◆ GetCopy()

Element * Load::GetCopy ( )

virtual

Get a the element copy.

Returns: Copy of the element.

Reimplemented from Element.

Definition at line 306 of file Load.cpp.

{
    Load* copy = new Load();
    *copy = *this;
    return copy;
}

◆ GetElectricalData()

LoadElectricalData Load::GetElectricalData ( )

inline

Definition at line 89 of file Load.h.

89{ return m_electricalData; }

◆ GetElectricalDataRef()

LoadElectricalData & Load::GetElectricalDataRef ( )

inline

Definition at line 90 of file Load.h.

90{ return m_electricalData; }

◆ GetPlotData()

bool Load::GetPlotData	(	ElementPlotData &	plotData,
		PlotStudy	study = `PlotStudy::STABILITY`
	)

virtual

Fill the plot data.

Parameters

plotData Plot data to be filled.

Returns: true if the plot data was successfully filled, false otherwise.

Reimplemented from PowerElement.

Definition at line 368 of file Load.cpp.

{
    if (!m_electricalData.plotLoad) return false;
    plotData.SetName(m_electricalData.name);
    plotData.SetCurveType(ElementPlotData::CurveType::CT_LOAD);

    std::vector<double> absVoltage, activePower, reactivePower, current;
    for (unsigned int i = 0; i < m_electricalData.voltageVector.size(); ++i) {
        absVoltage.push_back(std::abs(m_electricalData.voltageVector[i]));
        activePower.push_back(std::real(m_electricalData.electricalPowerVector[i]));
        reactivePower.push_back(std::imag(m_electricalData.electricalPowerVector[i]));
        current.push_back(std::abs(std::complex<double>(activePower[i], -reactivePower[i]) /
            std::conj(m_electricalData.voltageVector[i])));
    }

    plotData.AddData(absVoltage, _("Voltage"));
    plotData.AddData(activePower, _("Active power"));
    plotData.AddData(reactivePower, _("Reactive power"));
    plotData.AddData(current, _("Current"));

    return true;
}

◆ GetPUElectricalData()

LoadElectricalData Load::GetPUElectricalData ( double systemPowerBase )

Definition at line 258 of file Load.cpp.

{
    LoadElectricalData data;

    data.name = m_electricalData.name;

    data.activePower = m_electricalData.activePower;
    data.activePowerUnit = m_electricalData.activePowerUnit;

    data.reactivePower = m_electricalData.reactivePower;
    data.reactivePowerUnit = m_electricalData.reactivePowerUnit;

    switch (data.activePowerUnit) {
    case ElectricalUnit::UNIT_W: {
        data.activePower = data.activePower / systemPowerBase;
        data.activePowerUnit = ElectricalUnit::UNIT_PU;
    } break;
    case ElectricalUnit::UNIT_kW: {
        data.activePower = (data.activePower * 1e3) / systemPowerBase;
        data.activePowerUnit = ElectricalUnit::UNIT_PU;
    } break;
    case ElectricalUnit::UNIT_MW: {
        data.activePower = (data.activePower * 1e6) / systemPowerBase;
        data.activePowerUnit = ElectricalUnit::UNIT_PU;
    } break;
    default:
        break;
    }
    switch (data.reactivePowerUnit) {
    case ElectricalUnit::UNIT_var: {
        data.reactivePower = data.reactivePower / systemPowerBase;
        data.reactivePowerUnit = ElectricalUnit::UNIT_PU;
    } break;
    case ElectricalUnit::UNIT_kvar: {
        data.reactivePower = (data.reactivePower * 1e3) / systemPowerBase;
        data.reactivePowerUnit = ElectricalUnit::UNIT_PU;
    } break;
    case ElectricalUnit::UNIT_Mvar: {
        data.reactivePower = (data.reactivePower * 1e6) / systemPowerBase;
        data.reactivePowerUnit = ElectricalUnit::UNIT_PU;
    } break;
    default:
        break;
    }

    return data;
}

◆ GetTipText()

wxString Load::GetTipText ( ) const

virtual

Get the tip text.

Returns: Tip text.

Reimplemented from Element.

Definition at line 313 of file Load.cpp.

{
    wxString tipText = m_electricalData.name;

    // TODO: Avoid power calculation.
    double activePower = m_electricalData.activePower;
    double reactivePower = m_electricalData.reactivePower;
    if (!m_online) {
        activePower = 0.0;
        reactivePower = 0.0;
    }
    if (m_online && m_electricalData.loadType == CONST_IMPEDANCE) {
        std::complex<double> v = static_cast<Bus*>(m_parentList[0])->GetElectricalData().voltage;
        reactivePower *= std::pow(std::abs(v), 2);
        activePower *= std::pow(std::abs(v), 2);
    }
    tipText += "\n";
    tipText += _("\nP = ") + wxString::FromDouble(activePower, 5);
    switch (m_electricalData.activePowerUnit) {
    case ElectricalUnit::UNIT_PU: {
        tipText += _(" p.u.");
    } break;
    case ElectricalUnit::UNIT_W: {
        tipText += _(" W");
    } break;
    case ElectricalUnit::UNIT_kW: {
        tipText += _(" kW");
    } break;
    case ElectricalUnit::UNIT_MW: {
        tipText += _(" MW");
    } break;
    default:
        break;
    }
    tipText += _("\nQ = ") + wxString::FromDouble(reactivePower, 5);
    switch (m_electricalData.reactivePowerUnit) {
    case ElectricalUnit::UNIT_PU: {
        tipText += _(" p.u.");
    } break;
    case ElectricalUnit::UNIT_var: {
        tipText += _(" var");
    } break;
    case ElectricalUnit::UNIT_kvar: {
        tipText += _(" kvar");
    } break;
    case ElectricalUnit::UNIT_Mvar: {
        tipText += _(" Mvar");
    } break;
    default:
        break;
    }

    return tipText;
}

◆ OpenElement()

bool Load::OpenElement	(	rapidxml::xml_node<> *	elementNode,
		std::vector< Element * >	parentList
	)

virtual

Reimplemented from PowerElement.

Definition at line 437 of file Load.cpp.

{
    if (!OpenCADProperties(elementNode, parentList)) return false;
    // The load have to insert the points that define his triangle
    m_triangPts.push_back(wxPoint2DDouble(-m_width / 2.0, -m_height / 2.0));
    m_triangPts.push_back(wxPoint2DDouble(m_width / 2.0, -m_height / 2.0));
    m_triangPts.push_back(wxPoint2DDouble(0.0, m_height / 2.0));

    auto electricalProp = elementNode->first_node("ElectricalProperties");
    if (!electricalProp) return false;

    SetOnline(XMLParser::GetNodeValueInt(electricalProp, "IsOnline"));
    m_electricalData.name = electricalProp->first_node("Name")->value();
    m_electricalData.activePower = XMLParser::GetNodeValueDouble(electricalProp, "ActivePower");
    m_electricalData.activePowerUnit =
        static_cast<ElectricalUnit>(XMLParser::GetAttributeValueInt(electricalProp, "ActivePower", "UnitID"));
    m_electricalData.reactivePower = XMLParser::GetNodeValueDouble(electricalProp, "ReactivePower");
    m_electricalData.reactivePowerUnit =
        static_cast<ElectricalUnit>(XMLParser::GetAttributeValueInt(electricalProp, "ReactivePower", "UnitID"));
    m_electricalData.loadType = static_cast<LoadType>(XMLParser::GetNodeValueInt(electricalProp, "LoadType"));
    // Stability
    auto stability = electricalProp->first_node("Stability");
    if (stability) {
        m_electricalData.plotLoad = XMLParser::GetNodeValueInt(stability, "PlotLoad");
        m_electricalData.useCompLoad = XMLParser::GetNodeValueInt(stability, "UseCompositeLoad");
        auto activePowerComp = stability->first_node("ActivePowerComposition");
        m_electricalData.constImpedanceActive = XMLParser::GetNodeValueDouble(activePowerComp, "ConstantImpedance");
        m_electricalData.constCurrentActive = XMLParser::GetNodeValueDouble(activePowerComp, "ConstantCurrent");
        m_electricalData.constPowerActive = XMLParser::GetNodeValueDouble(activePowerComp, "ConstantPower");
        auto reactivePowerComp = stability->first_node("ReactivePowerComposition");
        m_electricalData.constImpedanceReactive = XMLParser::GetNodeValueDouble(reactivePowerComp, "ConstantImpedance");
        m_electricalData.constCurrentReactive = XMLParser::GetNodeValueDouble(reactivePowerComp, "ConstantCurrent");
        m_electricalData.constPowerReactive = XMLParser::GetNodeValueDouble(reactivePowerComp, "ConstantPower");
    }

    if (!OpenSwitchingData(electricalProp)) return false;
    if (m_swData.swTime.size() != 0) SetDynamicEvent(true);

    m_inserted = true;

    return true;
}

◆ Rotate()

void Load::Rotate ( bool clockwise = true )

virtual

Rotate the element.

Parameters

clockwise True to rotate clockwise, false to rotate counter-clockwise.

Reimplemented from Element.

Definition at line 214 of file Load.cpp.

{
    double rotAngle = m_rotationAngle;
    if (!clockwise) rotAngle = -m_rotationAngle;

    m_angle += rotAngle;
    if (m_angle >= 360 || m_angle <= -360) m_angle = 0.0;
    m_pointList[2] = RotateAtPosition(m_pointList[2], rotAngle);
    m_pointList[3] = RotateAtPosition(m_pointList[3], rotAngle);
    UpdateSwitchesPosition();
    UpdatePowerFlowArrowsPosition();
}

Here is the call graph for this function:

◆ SaveElement()

rapidxml::xml_node * Load::SaveElement	(	rapidxml::xml_document<> &	doc,
		rapidxml::xml_node<> *	elementListNode
	)

virtual

Reimplemented from Element.

Definition at line 391 of file Load.cpp.

{
    auto elementNode = XMLParser::AppendNode(doc, elementListNode, "Load");
    XMLParser::SetNodeAttribute(doc, elementNode, "ID", m_elementID);

    SaveCADProperties(doc, elementNode);

    auto electricalProp = XMLParser::AppendNode(doc, elementNode, "ElectricalProperties");
    auto isOnline = XMLParser::AppendNode(doc, electricalProp, "IsOnline");
    XMLParser::SetNodeValue(doc, isOnline, m_online);
    auto name = XMLParser::AppendNode(doc, electricalProp, "Name");
    XMLParser::SetNodeValue(doc, name, m_electricalData.name);
    auto activePower = XMLParser::AppendNode(doc, electricalProp, "ActivePower");
    XMLParser::SetNodeValue(doc, activePower, m_electricalData.activePower);
    XMLParser::SetNodeAttribute(doc, activePower, "UnitID", static_cast<int>(m_electricalData.activePowerUnit));
    auto reactivePower = XMLParser::AppendNode(doc, electricalProp, "ReactivePower");
    XMLParser::SetNodeValue(doc, reactivePower, m_electricalData.reactivePower);
    XMLParser::SetNodeAttribute(doc, reactivePower, "UnitID", static_cast<int>(m_electricalData.reactivePowerUnit));
    auto loadType = XMLParser::AppendNode(doc, electricalProp, "LoadType");
    XMLParser::SetNodeValue(doc, loadType, m_electricalData.loadType);

    auto stability = XMLParser::AppendNode(doc, electricalProp, "Stability");
    auto plotLoad = XMLParser::AppendNode(doc, stability, "PlotLoad");
    XMLParser::SetNodeValue(doc, plotLoad, m_electricalData.plotLoad);
    auto useCompLoad = XMLParser::AppendNode(doc, stability, "UseCompositeLoad");
    XMLParser::SetNodeValue(doc, useCompLoad, m_electricalData.useCompLoad);
    auto activePowerCompl = XMLParser::AppendNode(doc, stability, "ActivePowerComposition");
    auto pzl = XMLParser::AppendNode(doc, activePowerCompl, "ConstantImpedance");
    XMLParser::SetNodeValue(doc, pzl, m_electricalData.constImpedanceActive);
    auto pil = XMLParser::AppendNode(doc, activePowerCompl, "ConstantCurrent");
    XMLParser::SetNodeValue(doc, pil, m_electricalData.constCurrentActive);
    auto ppl = XMLParser::AppendNode(doc, activePowerCompl, "ConstantPower");
    XMLParser::SetNodeValue(doc, ppl, m_electricalData.constPowerActive);
    auto reactivePowerCompl = XMLParser::AppendNode(doc, stability, "ReactivePowerComposition");
    auto qzl = XMLParser::AppendNode(doc, reactivePowerCompl, "ConstantImpedance");
    XMLParser::SetNodeValue(doc, qzl, m_electricalData.constImpedanceReactive);
    auto qil = XMLParser::AppendNode(doc, reactivePowerCompl, "ConstantCurrent");
    XMLParser::SetNodeValue(doc, qil, m_electricalData.constCurrentReactive);
    auto qpl = XMLParser::AppendNode(doc, reactivePowerCompl, "ConstantPower");
    XMLParser::SetNodeValue(doc, qpl, m_electricalData.constPowerReactive);

    SaveSwitchingData(doc, electricalProp);

    return elementNode;
}

◆ SetElectricalData()

void Load::SetElectricalData ( const LoadElectricalData & electricalData )

inline

Definition at line 92 of file Load.h.

92{ m_electricalData = electricalData; }

◆ ShowForm()

bool Load::ShowForm	(	wxWindow *	parent,
		Element *	element,
		wxWindow *	workspace = `nullptr`
	)

virtual

Show element data form.

Parameters

parent	Form parent
element	Element that will be edited.

Returns: True if the form is shown, false otherwise.

Reimplemented from Element.

Definition at line 245 of file Load.cpp.

{
    wxLogDebug("Before form constructor");
    LoadForm loadForm(parent, this);
    loadForm.CenterOnParent();
    wxLogDebug("Before ShowModal");
    if (loadForm.ShowModal() == wxID_OK) {
        wxLogDebug("After ShowModal");
        return true;
    }
    return false;
}

Member Data Documentation

◆ m_electricalData

LoadElectricalData Load::m_electricalData

protected

Definition at line 100 of file Load.h.

◆ m_triangPts

std::vector<wxPoint2DDouble> Load::m_triangPts

protected

Definition at line 99 of file Load.h.

The documentation for this class was generated from the following files:

Project/elements/powerElement/Load.h
Project/elements/powerElement/Load.cpp
