This class is responsible to manage the ControlEditor instances in the application. More...

#include <ControlEditorManager.h>

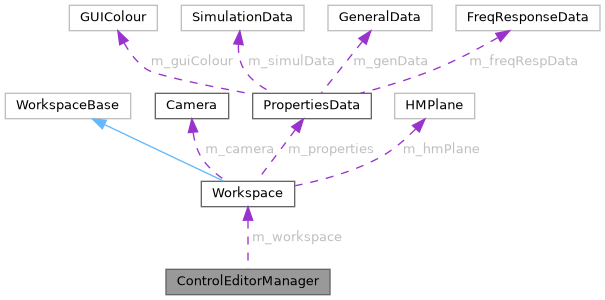

Collaboration diagram for ControlEditorManager:

[legend]

Public Member Functions
	ControlEditorManager (Workspace *workspace)

ControlEditor *	Open (ControlElementContainer *container, int plotLib, int ioFlags)

void	Remove (ControlEditor *editor)

void	CloseAll ()

bool	IsOpen (ControlElementContainer *container) const

ControlEditor *	GetEditor (const ControlElementContainer *container) const

Private Attributes
Workspace *	m_workspace = nullptr

std::vector< ControlEditor * >	m_editors

Detailed Description

This class is responsible to manage the ControlEditor instances in the application.

Author: Thales Lima Oliveira thale.nosp@m.s.ol.nosp@m.iveir.nosp@m.a@uf.nosp@m.tm.ed.nosp@m.u.br

Date: 30/06/2026

Definition at line 34 of file ControlEditorManager.h.

Constructor & Destructor Documentation

◆ ControlEditorManager()

ControlEditorManager::ControlEditorManager ( Workspace * workspace )

explicit

Definition at line 26 of file ControlEditorManager.cpp.

    : m_workspace(workspace)
{
}

◆ ~ControlEditorManager()

ControlEditorManager::~ControlEditorManager ( )

Definition at line 31 of file ControlEditorManager.cpp.

{
    CloseAll();
}

Member Function Documentation

◆ CloseAll()

void ControlEditorManager::CloseAll ( )

Definition at line 73 of file ControlEditorManager.cpp.

{
    auto editors = m_editors;

    for (auto* editor : editors)
    {
        if (editor)
            editor->Destroy();
    }

    m_editors.clear();
}

◆ GetEditor()

ControlEditor * ControlEditorManager::GetEditor ( const ControlElementContainer * container ) const

Definition at line 91 of file ControlEditorManager.cpp.

{
    for (auto* editor : m_editors)
    {
        if (!editor)
            continue;

        if (editor->GetControlContainer() == container)
            return editor;
    }

    return nullptr;
}

◆ IsOpen()

bool ControlEditorManager::IsOpen ( ControlElementContainer * container ) const

Definition at line 86 of file ControlEditorManager.cpp.

{
    return GetEditor(container) != nullptr;
}

◆ Open()

ControlEditor * ControlEditorManager::Open	(	ControlElementContainer *	container,
		int	plotLib,
		int	ioFlags
	)

Definition at line 36 of file ControlEditorManager.cpp.

{
    ControlEditor* editor = GetEditor(container);

    if (editor)
    {
        //editor->Raise();
        //editor->SetFocus();
        //return editor;
        editor->Close();
        editor = nullptr;
    }

    editor = new ControlEditor(m_workspace, m_workspace->GetProperties(), ioFlags);

    editor->SetManager(this);
    editor->SetElementsList(container->GetControlElementsList());
    editor->SetConnectionsList(container->GetConnectionLineList());
    editor->SetControlContainer(container);
    editor->SetPlotLib(plotLib);

    m_editors.push_back(editor);

    editor->Show();
    editor->SetJustOpened(true);

    return editor;
}

◆ Remove()

void ControlEditorManager::Remove ( ControlEditor * editor )

Definition at line 65 of file ControlEditorManager.cpp.

{
    auto it = std::find(m_editors.begin(), m_editors.end(), editor);

    if (it != m_editors.end())
        m_editors.erase(it);
}

Member Data Documentation

◆ m_editors

std::vector<ControlEditor*> ControlEditorManager::m_editors

private

Definition at line 53 of file ControlEditorManager.h.

◆ m_workspace

Workspace* ControlEditorManager::m_workspace = nullptr
